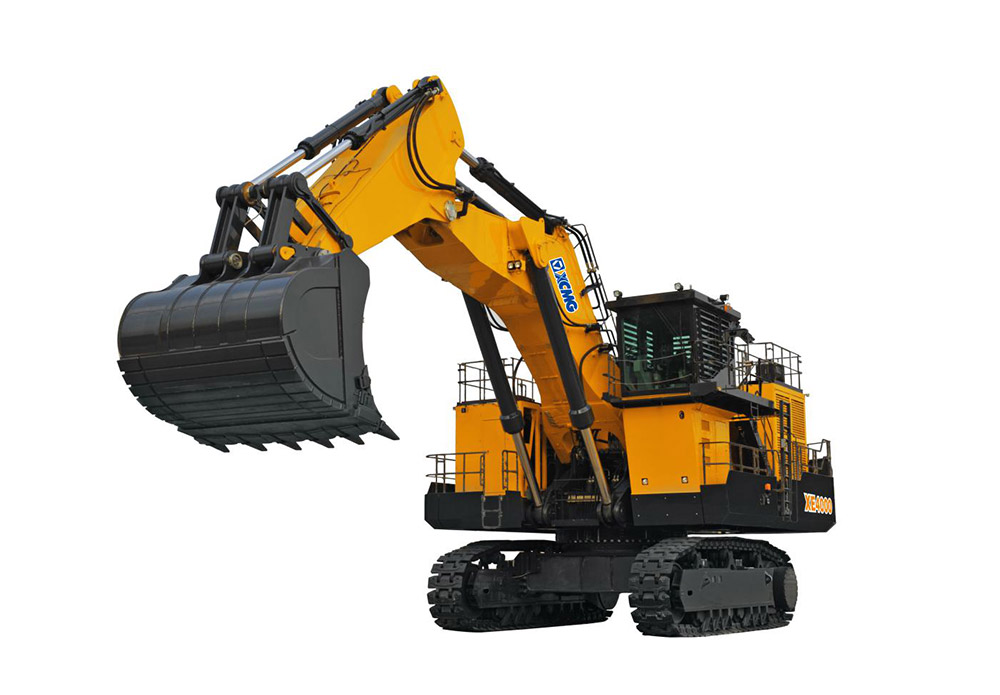

Mining Excavator
XE4000 Share
  • Operating weight(kg)
    384000
  • Engine power(kW/rpm)
    1491/1800
  • Bucket capacity(m³)
    15-23
XE4000
  • Product FEATURE
  • PARAMETERS
  • CONSTRUCTION CASES
Product FEATURE

1. The excavator is an assembly of high-end technologies whose key components are globally advanced. The entire vehicle is characterized with high reliability, high efficiency, high intelligence and convenience of maintenance.

2. Excellent performance of electrically controlled positive flow system that perfectly matches XCMG independently developed control system ensures smooth and steady combined movements, increases operating efficiency and reduces oil consumption.

3. Low operating cost of full life span: the oil circulation system and exhaust gas injection technology integrated in the engine have greatly extended maintenance interval and reduced use cost; meanwhile, the quantity of main pumps is the least in this industry which leads to low replacement cost of assemblies.

4. Intelligent monitoring system and fault self-analysis system, ground level oil injection, centralized lubrication system and diversified safety devices altogether guarantee safe and efficient overall vehicle operation, convenient maintenance and high adaptability to demanding mining conditions.

5. Modular design of the vehicle makes it easy and convenient for site transfer.


PARAMETERS
Item
Operating weight
Engine power
Bucket capacity
Max. bucket rod digging force
Max. bucket digging force
Walking speed
Slewing speed
Max. digging radius
Max. dumping height
Unit
kg
kW/rpm
kN
kN
km/h
r/min
mm
mm
Parameter
384000
1491/1800
15-23
961
1057
1.6/2.3
3.1
18050
11740
